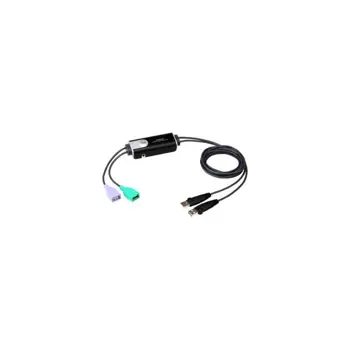

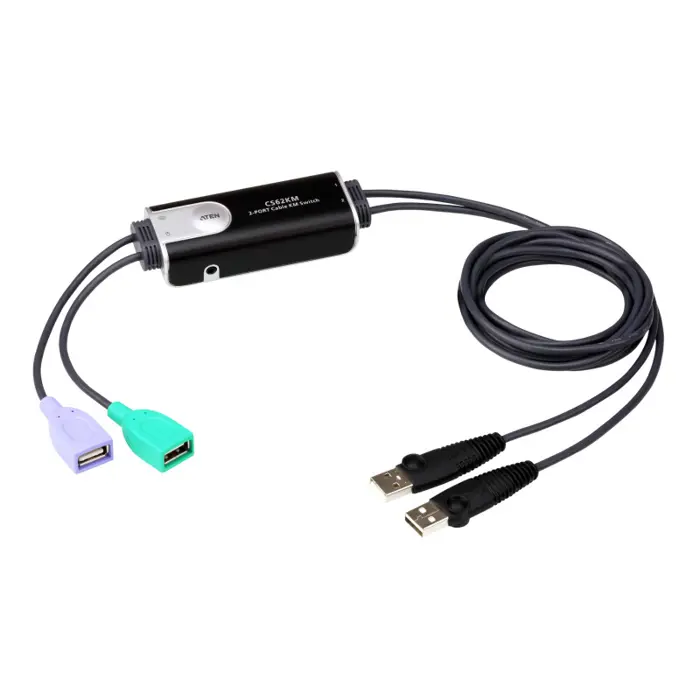

ATEN 2-port Boundless KM Switch (CS62KM)

- The ATEN CS62KM is a handy cable KM switch expediting access to two computers via one keyboard/mouse console
- Its compact yet multifunctional design allows effortless desktop setup and Boundless Switching between two displays via the mouse cursor for a hassle-free user experience
- Furthermore, switching between computers can be as flexible as the push of a hotkey/button or a mouse click
- The CS62KM is ideal for multitasking applications in any industry where administrative tasks need to be simplified
- The ATEN CS62KM is a 2-port USB Cable KM Switch that enables users to control up to 2 computers with a single keyboard and mouse
- The CS62KM offers various innovative port selection methods for users to switch between the connected computers via remote port selector, keyboard hotkey, mouse cursor, and mouse wheel
- The mouse cursor method adopts ATENs exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display without limitations
- The CS62KMs Boundless Switching function supports up to 2 monitors, expediting the process of switching between computers for a smooth and hassle-free user experience
- In addition to making multitasking across two displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers
- Further advanced features of the CS62KM include bus-powered mode which means no external power adapter is required
- With a rich feature set, the CS62KM is designed to simplify administrative tasks, save space, and increase work productivity, and is especially suitable for complex multitasking applications in control rooms in any industry

Features
- Single USB keyboard and mouse control up to 2 computers
- Boundless Switching - simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the - keyboard/mouse operations from one computer to the next
- Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel
- No software required
- Firmware upgradable
- Supports USB hot-plugging
- Bus-powered - no external power adapter required
- Works with Windows, iOS, Android, macOS, and Linux operating systems

Specifications
- Computer Connections: 2
- Port Selection: Hotkey, Mouse Wheel, Mouse Cursor, Remote Port Selector

CONNECTORS
- Console Ports: 2× USB Type A Female
- KVM (Computer) Ports: 2× USB Type A Male
- Remote Port Selector: 1× 2.5mm Audio Jack Female

LEDs
- Selected: 2 (Green)

CABLE LENGTH
- Console: 0.15 m
- Computer: 1.2 m
- Remote Port Selector: 1.8 m

EMULATION
- Keyboard / Mouse: USB

POWER CONSUMPTION
- DC 5V:0.74W:7.7BTU

ENVIRONMENTAL
- Operating Temperature: 0C to 40C
- Storage Temperature: -20C to 60C
- Humidity: 0% - 80% RH, Non-condensing

PHYSICAL PROPERTIES
- Housing: Plastic
- Weight: 0.12 kg
- Dimensions (L×W×H): 8.45×3.40×2.21 cm
* For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format

PACKAGE CONTENTS
1× CS62KM 2-Port USB Boundless Cable KM Switch
1× Remote Port Selector
1× User Instructions
